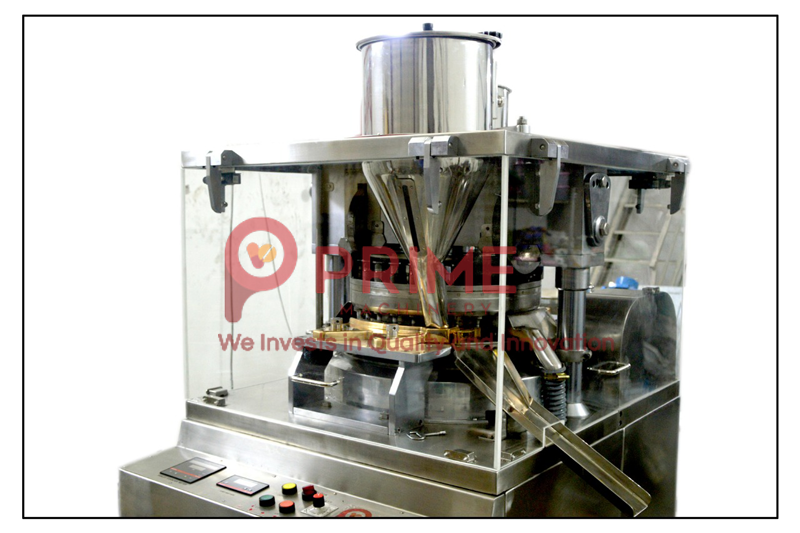

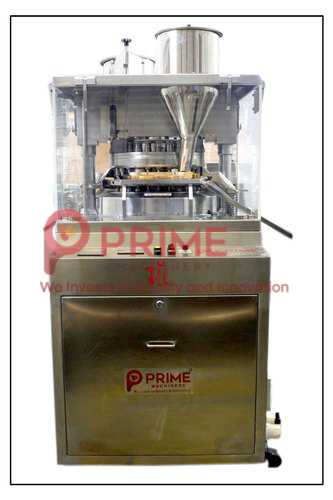

Double Sided Rotary Tablet Press Machine - GMP Model


Double Sided Rotary Tablet Press Machine - GMP Model
Double Sided Rotary Tablet Press Machine - GMP Model

At Prime Machinery, we are amongst the leading and trustworthy double sided rotary tablet press machine manufacturers. Since our inception, we have been offering a wide range of high performance double sided rotary tablet press machines to make the production processes more advanced and efficient. Our machines are not just durable and highly reliable but are fast and can produce definite and simple tablets from powdered material in less time. Our offered range of double sided rotary tablet press machines are made of premium grade raw materials and world class technology in compliance with international quality standards. Thus they come with a rugged design and ensure longer service life.

We have a state of the art manufacturing set up located at Ahmedabad with a significant land area. It is equipped with the latest and high performance machines and the latest technology which helps us serve the growing demands of the pharmaceutical industry. Being a leading rotary tablet press machine manufacturer, we understand the diverse production requirements of our clients and thus manufacture our tablet press machines in various customized options after undergoing strong analysis and suggestions. Our range of double sided rotary tablet press machinesin Ahmedabad are equipped with the most premium and sophisticated features for precise and fast tablet compression. They guarantee hassle free operations, while enhancing output and efficiency and maintaining the integrity of the product. Our extensive range of double sided rotary tablet press machines combine sophistication and technology and enable high output tablet production. Owing to superior product performance, longer service life, low noise, operator safety, they are widely appreciated by our esteemed clients.

Having years of technical experience and expertise in manufacturing pharmaceutical machineries, we produce and supply international quality double sided rotary tablet press machines gmp model. Manufactured using the most modern technology, they are suitable for both small and large scale production and promise high efficiency in making various kinds of tablets. Also, they are easy to operate, clean and maintain which makes it most ideal for pharmaceutical applications.

Description

Machine Type 27D 27B 35B 45BB
Number of Stations 27 27 35 45
Type of Tooling D B B BB
Output- Tablets/Hr 54000-129000 54000-129000 70000-168000 90000-216000
Turret RPM (Max) 40 RPM 40 RPM 40 RPM 40 RPM
Max. Operating Pressure 100 KN 60 KN 60 KN 60 KN
Max. Tablet Diameter 25 mm 16 mm. 16 mm 11.1 mm.
Max. Depth of Fill 20.5 mm. 17.5 mm. 17.5 mm. 17.5 mm.
Upper Punch Penetration 1.5 to 8 mm. 1.5 to 8 mm. 1.5 to 8 mm. 1.5 to 8 mm.
Diameter of Die(mm.) 38.1 30.15 30.15 24.1
Diameter of Punch(mm.) 25.34 18.99 18.99 18.99
Length of Punch(mm.) 133.6 133.6 133.6 133.6
Power 5.0 H.P. x 1440 RPM x 3 Phase x 415 Volts
Overall Dimensions(mm.) 1040 x 1000 x 1790
Net Weight (Kgs.) 1400
